Reprojection

Learn about Design reprojection and how to use it.

Contents

• What is Reprojection?
• What are the Requirements?
• How to Reproject

What is Reprojection?

Design reprojection allows you to "reproject" a Design from one 3D model onto a different 3D model. You might use it to:

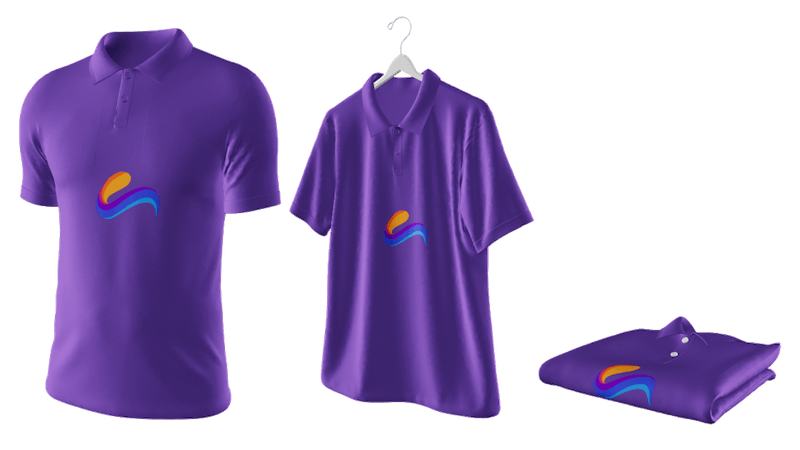

1. Render designs from an on-body model of a t-shirt onto merchandising models (folded, on a hanger, etc.)
2. Translate designs between low-poly and high-poly models for different export scenarios
3. Map a physical t-shirt onto a Roblox avatar
4. Produce print-ready assets in any number of printer-specific layouts

What are the Requirements?

1. A Design
2. Two 3D Models
3. A mapping definition between the two 3D models

A "mapping definition" is effectively a set of UV transformations, and we have utilities to help facilitate creating them if you need. The ModelLink API resource can be used to create a permanent mapping between two models -- the SDK knows how to look these up and use them.

How to Reproject

Given a design and a companion model, it's a straightforward method call.

1import { Core3D, reproject } from '@core3d/sdk';
2import { Adapter } from '@core3d/sdk-adapter-three';
3
4const core3d = new Core3D({
5    apiKey: '...', // your Core3D API token
6    createAdapter: ctx => new Adapter(ctx),
7});
8
9const design = await core3d.loadDesign('<uri for a design on t-shirt>');
10const model = await core3d.loadModel('<uri for a folded t-shirt>');
11
12await design.render();
13
14await reproject(core3d.ctx, { design, model });

Using this technique you can utilize the same design across a variety of target models.
